Self Contained System Split System

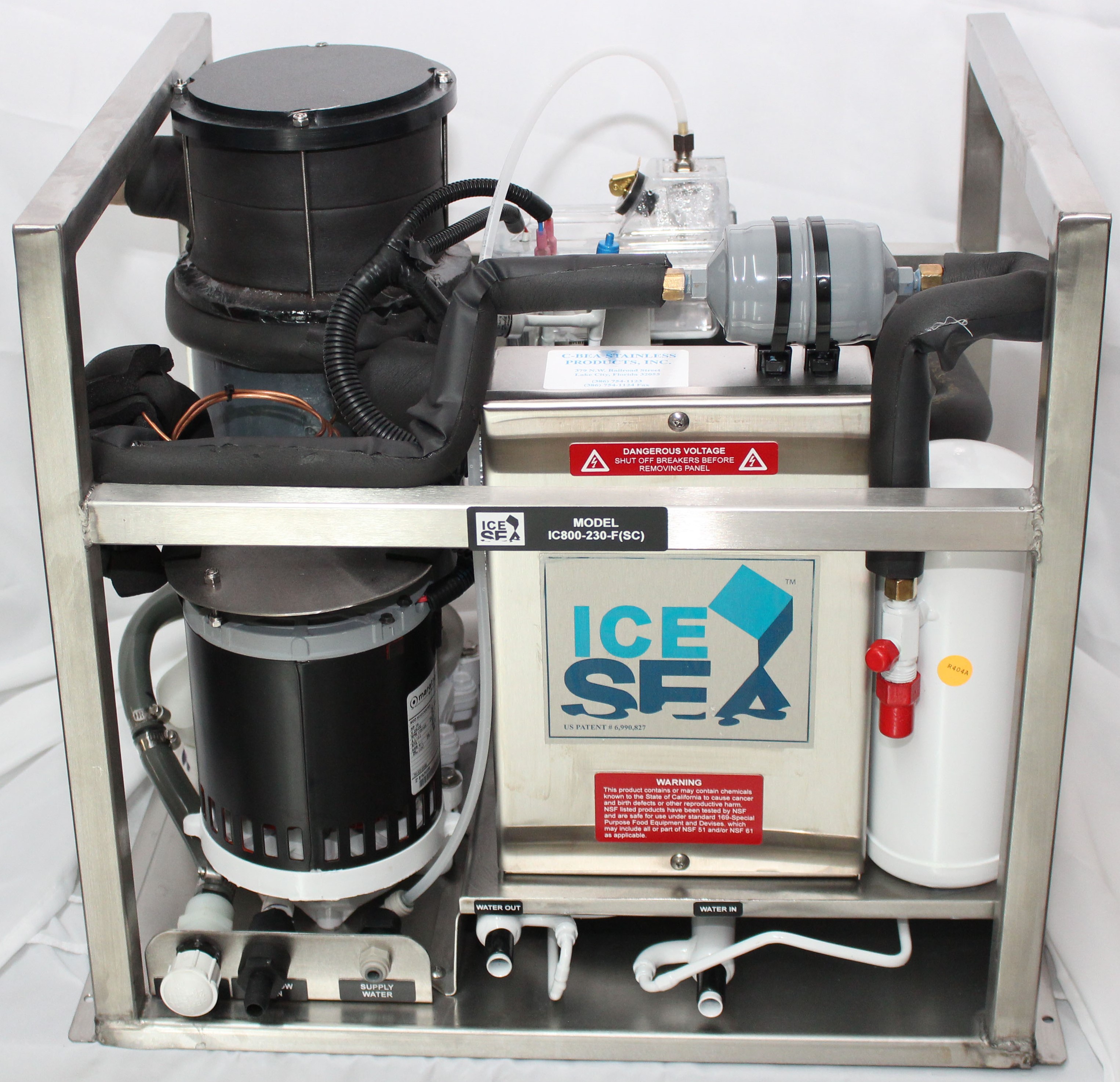

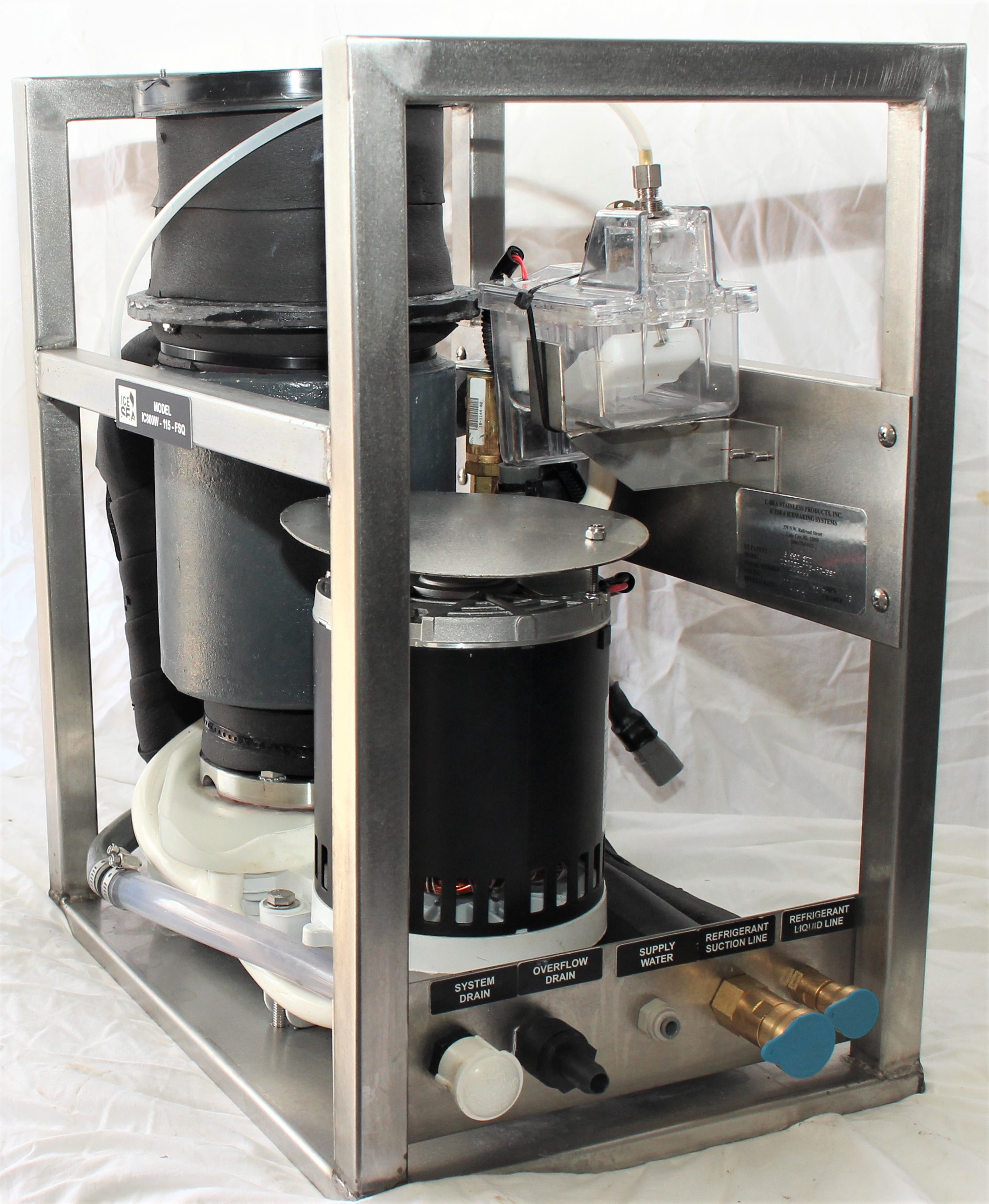

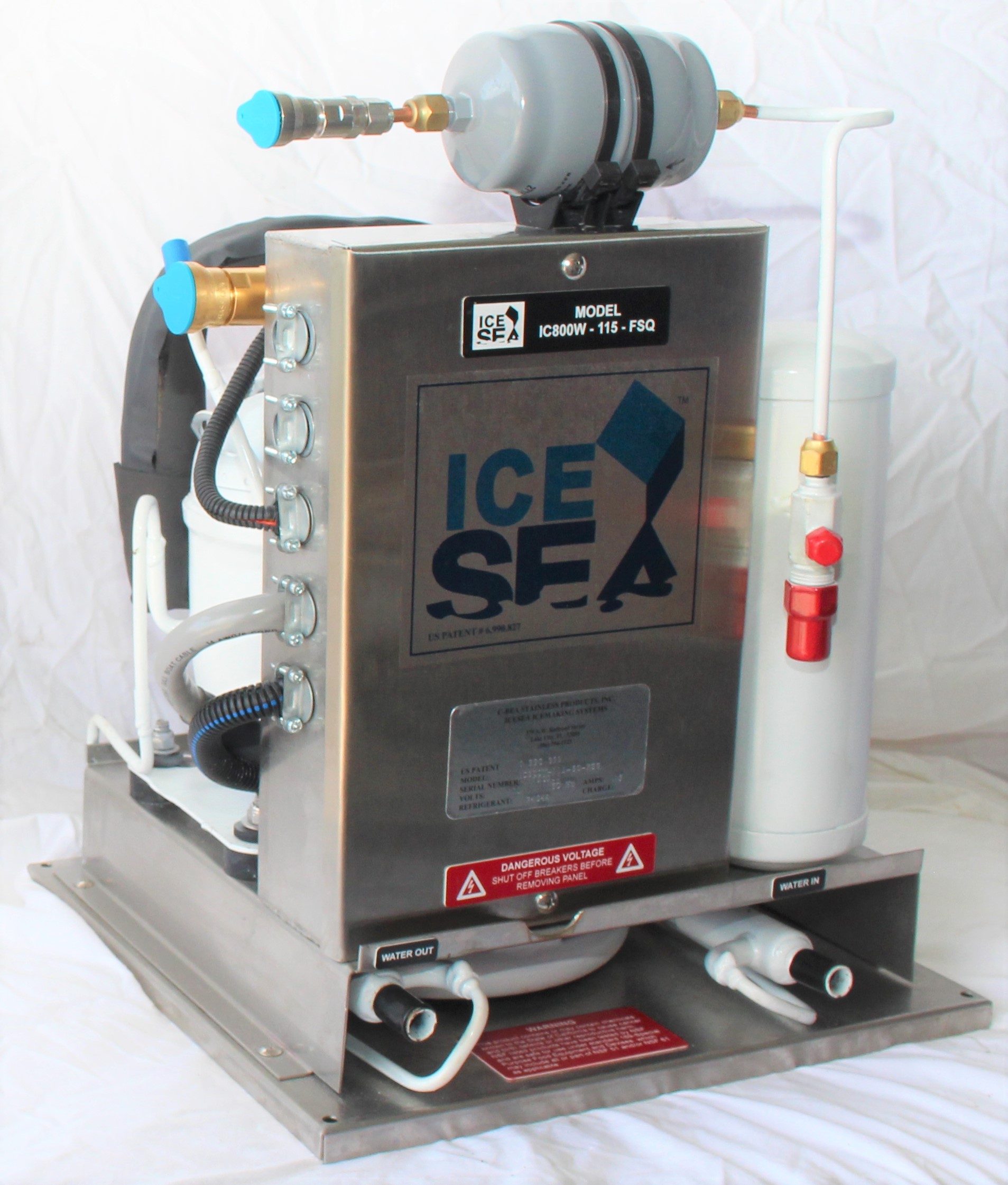

Self Contained Unit Ice Harvester Assembly Water Cooled Condensing Unit
View Specifications View Specifications

IceSeaTM ice makers produce a continuous supply of fresh water crushed ice or salt water brine ice for your fish or drink box with up to 66% more energy efficiency than other ice makers. Why salt water brine ice? Salt water brine is the choice of professional fishermen and discriminating sport fishermen because salt water brine ice keeps fish fresher much longer than fresh water ice.
IceSea ice makers are available in a single compact unit and also a unique two-piece (split System) design which allows for flexibility in installation. Each Unit comes complete with the ice making assembly, water cooled condensing unit, electronic control panel, and installation kit which includes; 15' of delivery tubing with insulation, Photo-Eye ice bin sensor, and water pumps. IceSeaTM ice makers are single phase and are available in 115 Volt or 230 Volt. Chassis for the ice making assemblies are made of marine grade stainless steel.
Features:
  • Fresh or Salt Water Ice Production.
  • Continuous crushed ice making process...no harvest time delays.
  • Up to 66% more energy efficient than ice cube models.
  • Up to 53% more energy efficient than other crushed ice models.
  • Split System allows auger to be remote mounted from condensing unit.
    • Includes up to 15' of Quick Disconnect Flexible Refrigerent Line sets.
    • Includes up to 15' of Quick Connect Electrical Wire sets.
  • Heavy duty Stainless Steel Auger & Evaporator assembly.
  • Freezing chamber cleaning delay permits drive motor to start with no loads.
  • Electronic Control Board:
    • Photo-Eye ice bin level control
    • Float sensor to determine if there is water in the reservoir
    • Current meter to measure the amp draw of the auger drive motor
